TRAVEL THE UNIVERSE WITH AWR TECHNOLOGY

www.awrtech.co.uk

'GOTO' SOLUTIONS FOR STANDARD AND NON-STANDARD MOUNTS
Drive systems to turn virtually any equatorial mount into 'GOTO' operation. Our Intelligent Drive System (Intelligent Handset and a Microstepping Drivebox) with motors and brackets have been fitted to many telescopes with up to 36 inch diameter mirrors. Standard kit for EQ5 for the user to fit from 750.00
We are taking orders for the HEQ5 version.

Users include mounts of EQ5, EQ6, Alter D6, Beacon Hill products, Orion Optics, Losmandy, home made, right up to a 36 inch friction drive telescope. Contact Alan Buckman at AWR Techgnology for advice on the right system for you.

On permanently mounted telescope systems users are reporting GOTO accuracy approaching 30 arc seconds, after the calibrations and the mount have been tweaked.

ASTRO DISPLAY UNITS
FOR THE OBSERVATORY
(NEW for 2004)
160.00 EACH

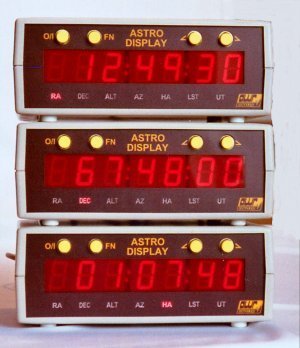

Provides observatory style large illuminated readouts from AWR, MEADE and VIXEN drive systems fitted with a computer port. Display one of seven parameters from RA, DEC, ALT, AZ, HA, LST, UT. It is transparent to serial data flow if a computer is connected so the telescope can still be controlled from Planetarium programmes. This product can also run from Heidenhain encoders.

Supplied with one serial lead of your choice and 12V power supply. Size 190 x 70 x 140mm with 20mm high digits.

Put 5 in a stack - awesome! THREE SHOWN HERE

More information.

THE SEEKER (NEW for 2004) 70.00
  • Put that PLANET on the CCD chip
  • IMPROVE YOUR DRIVING: analyse small drive errors
  • Create CELESTIAL PANORAMAS
This creates a rectangular spiral with any telescope fitted with an AUTOGUIDER INPUT socket. Programmable by the user to select the size of the spiral. Used for locating objects, nailing down drive errors and for photo mosaics. Further information


AWR Technology
The Old Bakehouse
Albert Rd, DEAL, Kent CT14 9RD
alan@buckman-hardy.co.uk
01304 365918
2004 AWR Technology

PRODUCTS AVAILABLE FROM YOUR FAVOURITE DEALER
